Configuring
Widgets from the UNIFACE '.ini' File
The widgets available on the UNIFACE
tool palette within the UDE can be configured to suit an individual
developer’s preferences. There are two ways this can be achieved.
Making widgets
appear directly on the tool-palette (rather than under the subset
Widget Menu)
In UNIFACE’s ‘.ini’ file, there
is a section heading "[gfp]". All UNIFACE logical widgets
can be added here (to the "widgets" option), allowing
developers immediate access to certain widgets from within the UDE.
For example, the following code is taken from an ‘.ini’ file.
[gfp]
widgets=EditBox, CommandButton,
RadioGroup, CheckBox, DropDownList
This means that the above widgets will
appear directly in the tool-palette window, and not underneath the
"Widget Menu" button on the tool-palette.

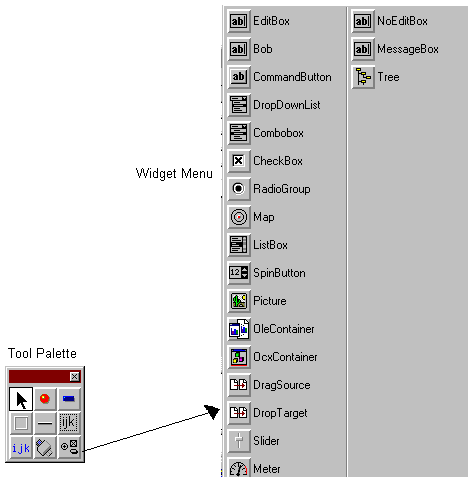

So instead of the tool-palette and
widget menu looking as follows,

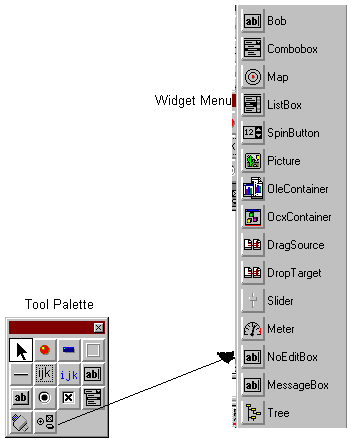

It will look as follows, with the
Editbox, CommandButton, RadioGroup, Checkbox and DropDownList
appearing directly on the Tool Palette.
This can speed up development time as
the UDE can be tailored slightly for each developer, although care
must be taken in multi-user environments with only one ".ini"
file.
The tool-palette is dynamic; i.e., you
do not have to exit from UNIFACE to re-load the palette. Saving the
contents of the ".ini" file is enough.
Creating new
logical widgets with different properties to the default physical
widgets
A physical widget is either a widget
supplied with UNIFACE or a custom widget (created with 3GL).
Physical widgets cannot be modified or painted on components;
instead they must be mapped to logical widgets. Logical widgets can
be defined in the UNIFACE ‘.ini’ file; the table below lists
several of the logical widgets, and their default properties,
included in UNIFACE’s default ‘.ini’ file.
Logical
widget |
Physical
widget |
EditBox |
ueditbox(font=editfont;autoselect=on) |
CheckBox |
ucheckbox |
Combobox |
ucombobox(font=listfont) |
CommandButton |
ucmdbutton(tooltip=off;font=buttonfont) |
DropDownList |
udropdownlist(font=listfont;forcefit=on) |
Label |
(cannot be customised) |
ListBox |
ulistbox(font=listfont) |
NoEditBox |
ueditbox(font=editfont;3D=off,frame=on) |
MessageBox |
ueditbox(font=editfont) |
RadioGroup |
uradiogroup(font=label) |
SpinButton |
uspinbutton(autoselect=on) |
Tab |
Utab |
A developer is able to customise most
of these widgets so that they have certain default properties. This
is achieved by creating new logical widgets based on the standard
UNIFACE physical widgets, and changing their associated properties.
These new logical widgets are defined in the "[widgets]"
section of the ".ini" file.
As an example, suppose we have a
developer, who wishes to customise several of the widgets
available to suit his development environment and programming style.
To accomplish this, the ".ini" file contains the following
extra lines underneath the "[widgets]" section heading.
[widgets]
…
…
WickedBox=ueditbox(font=buttonfont;
MultiLine=True; HScroll=False; wordwrap=true)
GeezerButton=ucmdbutton(tooltip=on;
font=monohuge)
NastyCheck=ucheckbox(tristate=false)

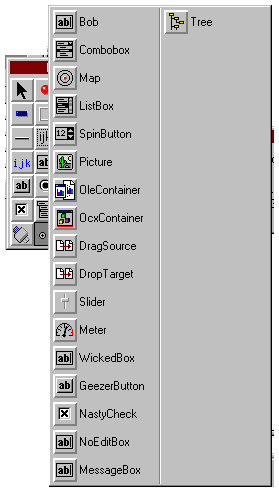

These new widgets will appear under the
"Widget Menu" button on the Tool Palette (or directly on
the tool-palette if included in the "[GFP]" section of the
".ini" file) and should be treated identically to normal
widgets. So, when the new EditBox widget "WickedBox" is
painted, it will, by default, allow multi-line data entry. The
command-button widget "GeezerButton" will allow ToolTips
by default, and all text on the button will appear in "monohuge"
font. The new checkbox widget "NastyCheck" will not allow
tri-state entry.
As an example,
This technique is particularly useful
for situations arising on customer sites, where particular standards
may be required for each widget type.
Problems can arise if forms are
exported to a different environment containing a different ".ini"
file, as the new widget definitions will probably not exist in this
environment.
|
