Create a Component

A Component is a VOB which contains your project files (Uniface source code etc).

In order to import your Uniface source code, the component must be created following these steps:

Planning for one or more VOBís

As described by Rational in the ClearCase documentation, performance of your VOB server may be reduced if the VOB is too large in size. If you are concerned about the size that your VOB's are or may become, consider:

a)Splitting your Uniface application models, and forms up into smaller 'projects', and store them in separate VOB's. Note: This will mean that from a single Uniface IDF session, only these elements can be seen, so this is NOT a solution for a system that has shared components.

b)Create several VOB's, one for tables, sub-types, relationships, one for components, one for globals and templates. Then use VOB symbolic links to make these appear to be a single VOB to UD6/CMtool Driver. Note: This is a good solution for Uniface development sites that use a lot of shared components or models.

The example described here uses a single VOB to store all the source code.

Create a Windows NT directory share

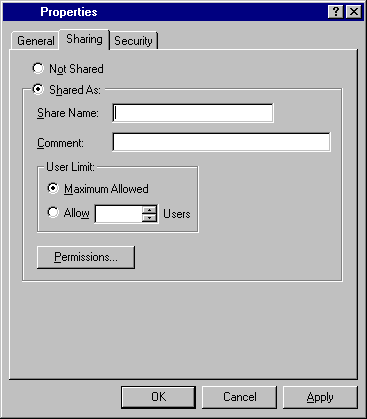

Log on to the VOB host and create, and then share (standard Windows NT share) a directory called uprjvob. In our example we have used c:\vobuprj, with a share name of \\ntwkst01\uprjvob.

Creating a Versioned Object Base

Follow the instructions in the Rational ClearCase Administration Manual (10.3) for creating a VOB. A general overview is given here.

Choose a VOB-tag, we used the name '\uprj'.

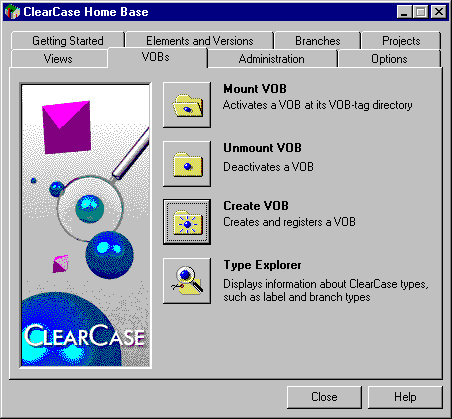

Create the VOB, using cleartool or a GUI tool like Clear Case Home Base, eg:

Press Create VOB

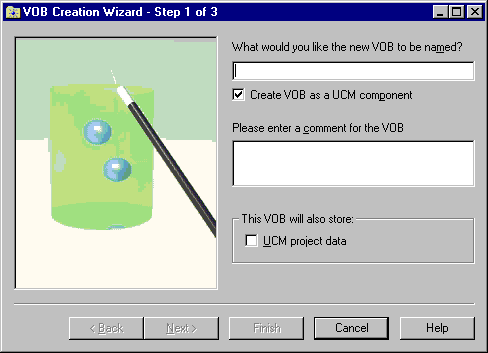

Enter these details:

Name: UPRJ1

Create VOB as UCM component: No

Description: Uniface Project Database

This VOB will also store: none

Press Next.

Select a storage location (the default was used in our example).

Press Finish.

VOB Tag Information:

Tag name: UPRJ1

Region name: evaluation_region


Uniface Project Database

VOB Storage Information:

VOB storage location:



+No administration VOB will be associated with this VOB

+WILL NOT use interoperability (MS-DOS) text mode

+WILL be reconnected at login

+WILL contain ClearCase elements


Created versioned object base.

Host-local path: ntwkst01:C:\ClearCase_Storage\VOBs\UPRJ1.vbs

Global path: \\ntwkst01\ccstg_c\VOBs\UPRJ1.vbs

VOB ownership:

owner MHELVINA\abarrett

group MHELVINA\Domain Users

VOBs have special data backup considerations. For more information on how to

back up your VOB properly, see the documentation for administering ClearCase.

If the backups aren't done properly, you are putting your data at risk!

Mounting MVFS filesystem \UPRJ1.

Create a temporary view for importing the cvt_data

To import the cvt_data file (created earlier), a view must exist for this VOB. We will create a permanent integration view later when the VOB is imported to the UCM project.

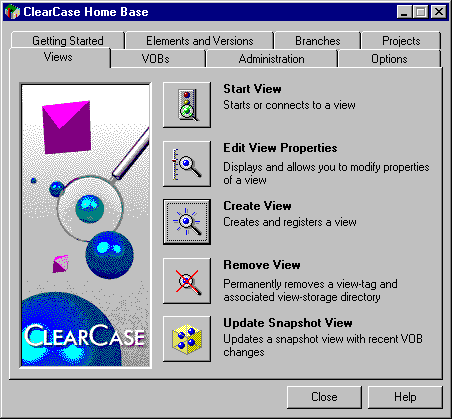

To create the view either use cleartool mkview, or ClearCase Home Base (select the Views property page):

Press Create View. Then press Next.

Select Dynamic View.

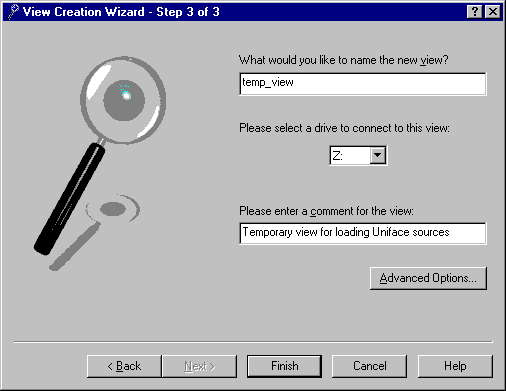

Enter these details:



description:Temporary view for loading Uniface sources

Press Finish.

Press OK to the confirmation(s).

Import the cvt_data to the VOB.

Your Uniface application source code has already been loaded into text files (in XML format) by the UD6/CMtool Driver, and stored on c: drive (we used the directory c:\cc). These next tasks copy these files into a ClearCase import format, then import them into ClearCase.

Use the ClearCase tool clearimport to load the file cvt_data created in the earlier step, to a view created on drive z:.

C:\cc\sources>    z:

Z:\>     cd UPRJ1

Z:\UPRJ>    clearimport -pcase c:\cc\sources\cvt_data

Label the imported elements ORIGINAL.

In order to be able to identify these files in a baseline, we will now label all the directory and file elements loaded as ORIGINAL.

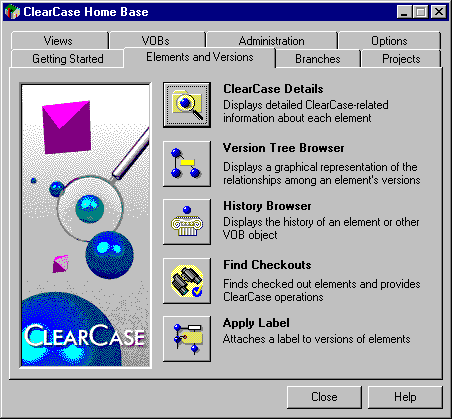

Using ClearCase Home Base, select the Elements and Versions tab, and then press Apply Label.

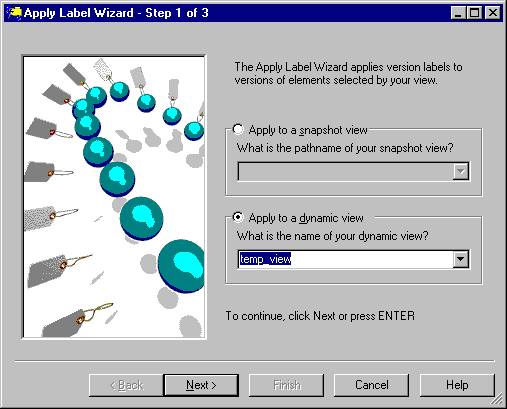

Apply the label to the view temp_view.

Press Next.

Add the directory UPRJ1 as the element to apply the label to. Press Next.

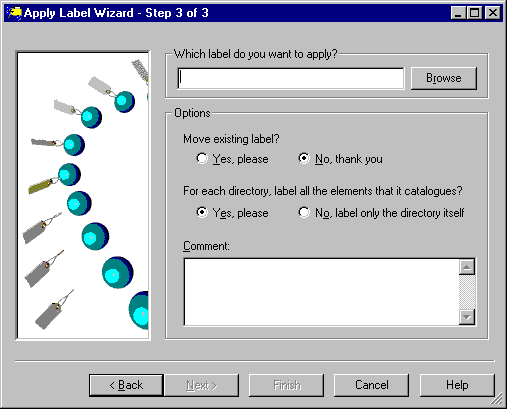

Enter the following details:

Which label:ORIGINAL (press Browse, Create Label Type, Name: ORIGINAL, OK, OK)

Move existing:No

Label all elements:Yes

Comment:Files loaded into UD6/CMtool Driver

Press Finish.

Destination view:


Label to apply:



+ For each directory, label all the elements that it catalogues

Elements to apply label to:



Files loaded into UD6/CMtool Driver

Press OK to the confirmation(s).

Answer No when you are prompted to apply another label.

Remove the temporary view

Remove use temporary view by using ClearCase Home Base, Remove View.
