Create Dimensions File Format and MIME type definitions

File format definitions define types of files that a PVCS Dimensions project contains, based on the filename extension. Uniface projects using the UD6/CMtool Driver have files with the following object types:

XML

XSL

CSS

GIF

However in a production environment you would usually also include object file types FRM, SVC, RPT, APS, DOL, URR (these would all be type: binary, application/uniface).

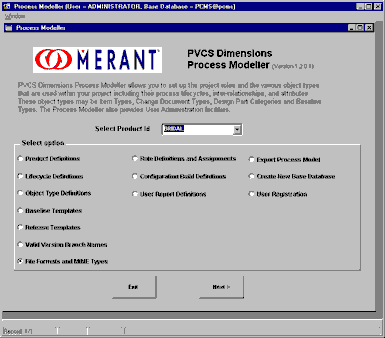

To define file types use the PVCS Dimensions Process Modeller.

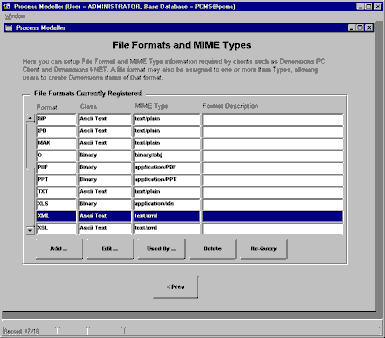

Add XML, CSS and XSL to File Formats and MIME types using the process modeller (Object Type Definitions) type=ASCII text (mime types are text/xml, text/css and text/xsl).

Add GIF to File Formats and MIME types using the process modeller (Object Type Definitions) type=Binary (mime type is image/gif).

Taking control

Create a Dimensions product
Define File Formats and MIME types
Define Object Type Definitions
Create a workset
Configure MULTIUSE
Upload the sources
Create baseline
